TRAILTECH H270 20'
Description

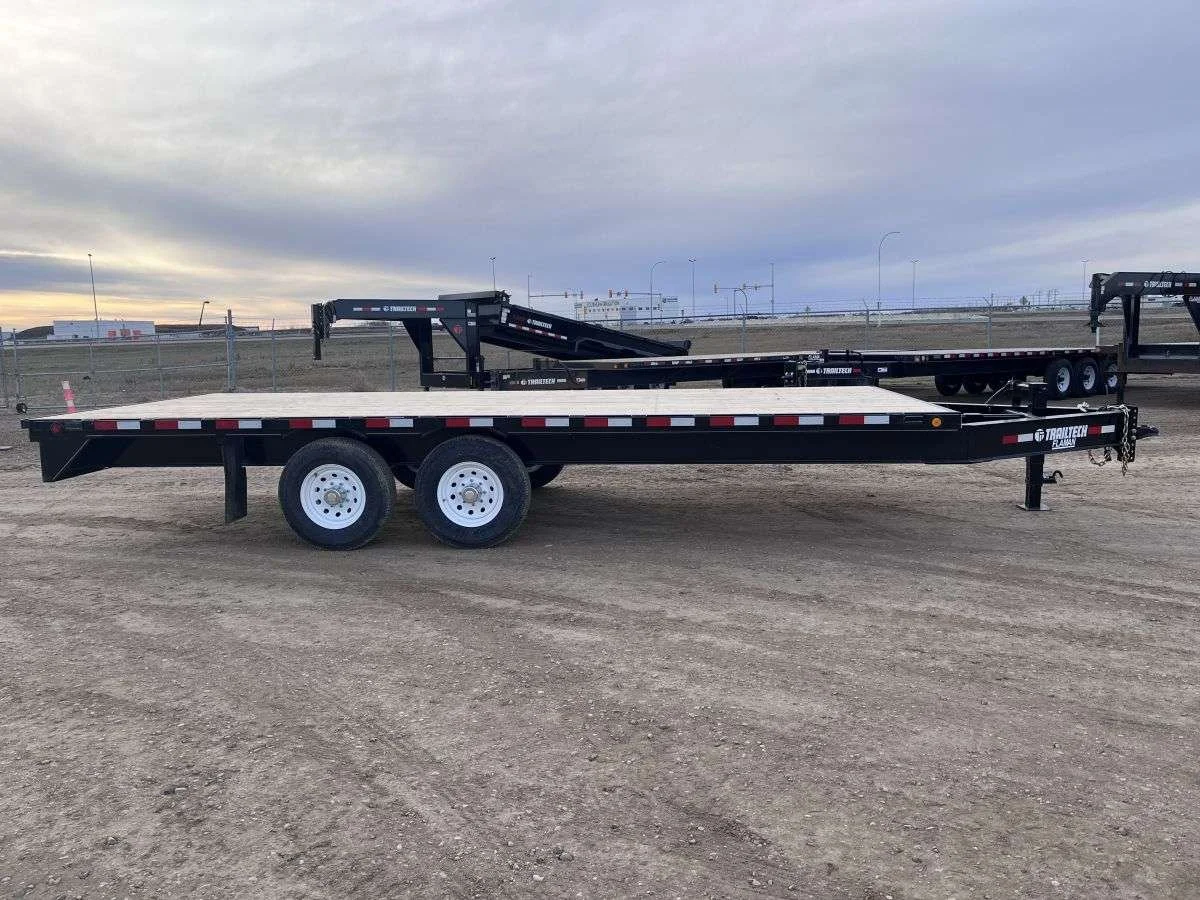

The Trailtech H270TPH 20', measuring 8.5' x 20', is a heavy-duty trailer with a robust W10 @ 12" I-Beam main frame and a GVWR of 16,100 lbs. Equipped with two 7,000 lb electric braking axles and a torsion suspension system, it ensures safe and smooth transportation of heavy loads. The trailer features slide-in ramps for easy loading, a versatile pintle hitch with an adjustable ball 2 5/16" coupler, and a 12,000# dropleg jack for stability. Its deck is made of durable #1 kiln-dried Canadian Spruce, standing at a height of 38 inches. The trailer is fitted with ST235/80R16 Load Range E tires and enhanced with LED lighting and fully protected Arctic wiring, making it suitable for various commercial and industrial hauling needs.
-
Make: Trailtech
Model: H270TPH 20'
Size: 8.5' x 20'
Loading: Slide in Ramps
GVWR: 16100 Lbs
GAWR (Per Axle): 7000 Lbs
Tare Weight (approx.): 4225 Lbs
Main Frame: W10 @ 12" I-Beam A992/A572-50
Crossmembers: 3" x 2" x .125 Tubing on 19.2" Centers
Axles: (2) 7000 lb Electric Braking
Suspension: Torsion
Overall Width: 102"
Hitch: Pintle Hitch with Adjustable Ball 2 5/16" Ball Coupler
Jack: 12000# Dropleg Jack
Deck: #1 Kiln Dried Canadian Spruce
Deck Height: 38"
Tires: ST235/80R16 Load Range E
Lights & Wiring: LED c/w Fully Protected Arctic Wiring
-
Make: Trailtech
Model: H270
Year: 2024
Width: 8 ft
Length: 20 ft
Weight: 14000 lbs
Axle Class: (2) 7000 lb
Deck Style: Highboy
Tilting Deck: No
Hitch: Bumperpull
