GHB208T Gooseneck Highboy Tilt Trailer - 20,000 GVW
Description

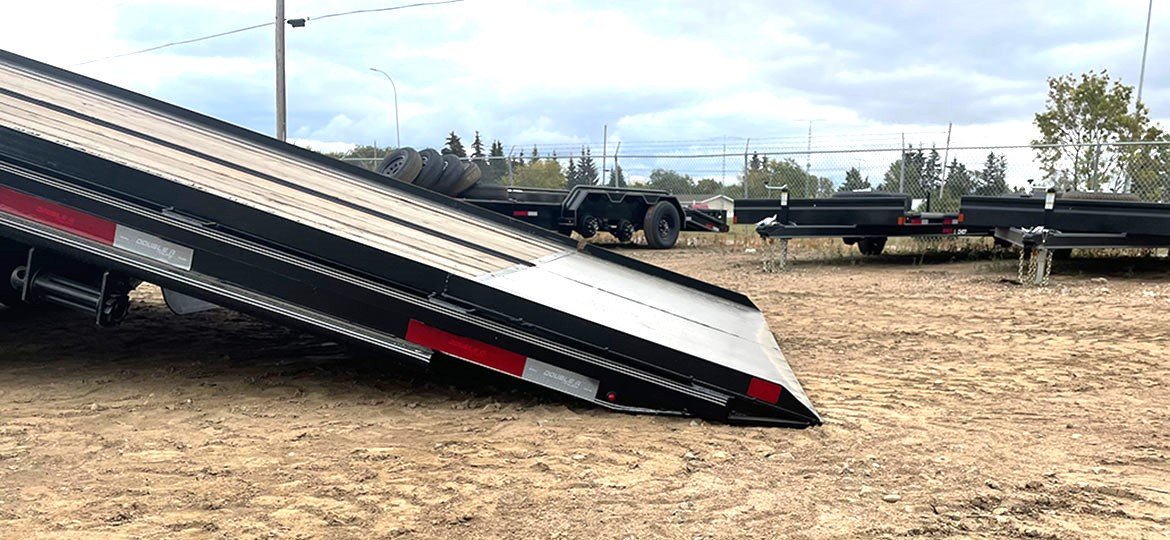

The GHB208T Gooseneck Highboy Tilt Trailer is a robust, high-capacity trailer designed for demanding hauling tasks, with a Gross Vehicle Weight (GVW) rating of 20,000 pounds. This trailer is especially suitable for applications that require the transport of heavy and large-scale equipment, such as in agriculture, construction, and heavy industry. Its gooseneck design provides enhanced stability and maneuverability, particularly beneficial for towing heavy loads over long distances. The highboy configuration of the trailer offers a raised deck height, ideal for hauling taller equipment or machinery. The tilt feature of the GHB208T allows for a smooth and controlled tilting of the deck, simplifying the process of loading and unloading heavy items. The construction of the trailer emphasizes durability and strength, with a reinforced frame and a sturdy deck capable of withstanding the rigors of heavy use. Safety features, including a reliable braking system and comprehensive lighting, ensure the safe transport of heavy loads under various conditions. The GHB208T Gooseneck Highboy Tilt Trailer is an excellent choice for those in need of a high-performance trailer for transporting heavy and large items reliably and safely.
-
Axle Size: (2) 10,000 lb; Electric Brakes with Oil Bath Hubs
Suspension: 5 Leaf Slipper Spring with Equalizers
Width: 102" Overall Width
Deck Height: 36"
Lace Rail: 5" Channel with Pockets & Rubrail
Coupler: GN 2 5/16" Adjustable Ball or Kingpin
Hoist: 7 Ton Full Tilt Scissor Hoist
Crossmembers: 3" Channel on 16" Centers
Tire & Rim: Dually 235/80R16
Landing Gear: (2) 12,000 lb
Toolbox: Lockable & Between Uprights
Safety Chains: 5/16 Grade 70 Chain with Grab Hooks
Wiring: Arctic Wiring, Soldered & Enclosed in Conduit
Lights: Rubber Mounted LED (30' & up come with side signal)
Decking: 2" Treated Wood, fastened with 1/4" Torx Screws
Steps: Steps & Grab Handles on each side
Finish: Sandblasted and Painted with PPG Urethane Paint
-
24'
Main Frame: 12@16lb
Carrying Capacity: 14,459 lbs
Tare Weight: 5,541 lbs
26'
Main Frame: 12@16lb
Carrying Capacity: 14,186 lbs
Tare Weight: 5,814 lbs
28'
Main Frame: 12@16lb
Carrying Capacity: 13,913 lbs
Tare Weight: 6,087 lbs
30'
Main Frame: 12@16lb with Torque Tube & Bridge
Carrying Capacity: 13,490 lbs
Tare Weight: 6,510 lbs
32'
Main Frame: 12@16lb with Torque Tube & Bridge
Carrying Capacity: 13,217 lbs
Tare Weight: 6,783 lbs
34'
Main Frame: 12@16lb with Torque Tube & Bridge
Carrying Capacity: 12,944 lbs
Tare Weight: 7,056 lbs
36'
Main Frame: 12@19lb with Torque Tube & Bridge
Carrying Capacity: 12,671 lbs
Tare Weight: 7,329 lbs
38'
Main Frame: 12@19lb with Torque Tube & Bridge
Carrying Capacity: 12,398 lbs
Tare Weight: 7,602 lbs
40'
Main Frame: 12@19lb with Torque Tube & Bridge
Carrying Capacity: 12,125 lbs
Tare Weight: 7,875 lbs
