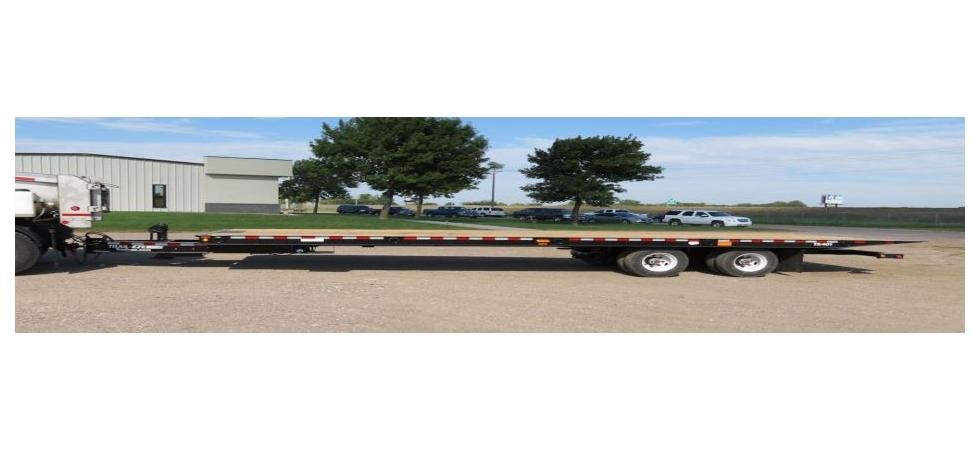

TE401 - TE401A - 20 TON - SLIDING AXLE TRAILER


- 20 TON - SLIDING AXLE TRAILER
TE401 - TE401A

TRAIL-EZE Trailers TE401 (20 ton) and TE501 (25 ton) are available as either a pintle hitch tag trailer or a 5th-wheel trailer.  These hydraulic sliding axle trailers have an 8 degree load angle.  In comparison to standard ramp trailers or tilt trailers, our TE401 & TE501 are the safest and most efficient way to haul equipment.  If you haul pavers, rollers or other construction type equipment, the TE401 & TE501 will be your best bet for safe, reliable loading and unloading.  With multiple configurations and endless options, TRAIL-EZE Trailers will make certain you get the right trailer for the job.

For the TRAIL-EZE "SLIDE AXLE SERIES (01)" and "CONTAINER FRAME SERIES" trailers manufactured after January 01, 2017, come with a Limited 10-Year Warranty on the original POLY slider pads and POLY scissor neck pin bushings that exceed 1/8" of normal wear.

Competitors using grease style pins and rollers require frequent maintenance and can be a hassle getting to them, not to mention just plain messy.  By eliminating the hassle of greasing, customers appreciate the benefit and value of reduced maintenance provided by the POLY pads and bushings.

Frame : High tensile steel I-beam main frame and crossmembers

Deck : 1 1/2" Oak decking

Load Angle : 9 Degrees

Pintle Hitch : 3" ID Adjustable (TE401)

Axles : (2) 20,000 Lb capacity

Brakes : 12 1/4" x 7 1/2" with S-Cam air auto slack adjusters, ABS, spring brakes and outboard drums

Wheels : (8) 6.75 x 17.5 Disc pilot mounted

Tires : (8) 215.75R x 17.5 Radials

Landing Gear : Pin drop (TE401A)

Tongue Jack : 18,000 Lb Crank type (TE401)

Cylinders : (2) Tilting cylinders - (1) Sliding cylinder

Suspension : H-9700 Spring

Tie Downs : 5 Per side

Safety Chains : 1/2" with hooks (TE401)

Electrical : ICC D.O.T. Standard light and reflector kit

Paint : Trailer sandblasted, primed and painted

Warranty : Limited 5 Year Major Structural Warranty

: Narrow Neck with King Pin - 9'-2" (TE401A)

Options : Many options available

DIMENSIONS

Capacity : TE401 - 40,000 Lb Payload capacity

Capacity : TE401A - 40,000 Lb Payload capacity

Overall Length : TE401 - 35'-4" / TE401A - 39'-7"

Width : 8'-6"

Deck Height : 37" Loaded

Bed Length : 30'-4"

Upper Deck Length : 9'-2" (TE401A)
